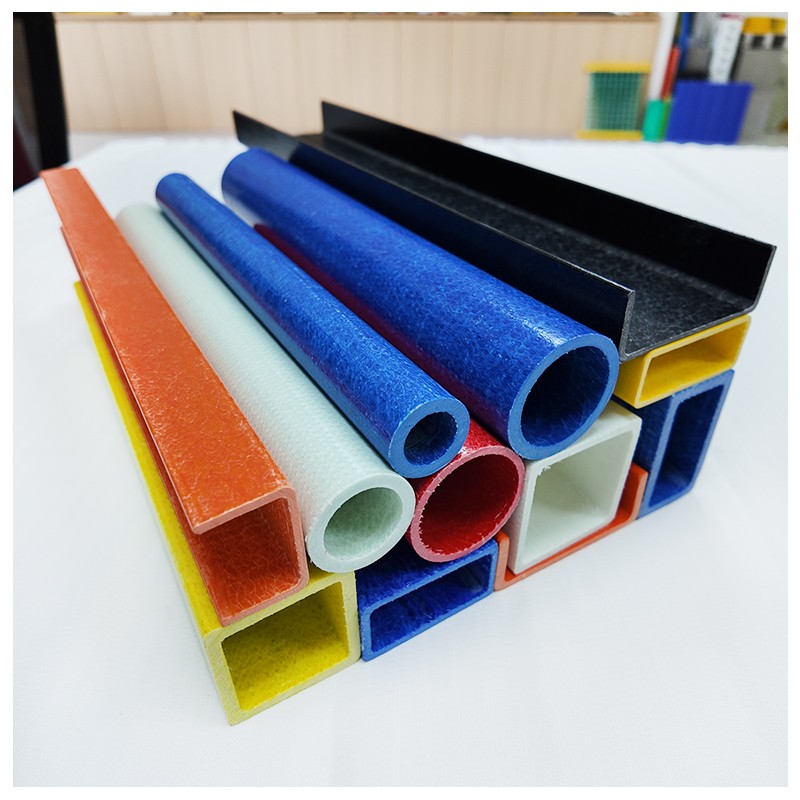

FRP pultruded profiles are manufactured by continuous pultrusion process with glass fiber reinforced thermosetting resin. Custom cross-sections including square tube, round tube, channel, I-beam, angle bar and flat bar are available. Widely used in chemical industry, power engineering, offshore projects, construction and transportation.

Main Technical Parameters

1. Density: 1.5～2.0 g/cm³

2. Longitudinal Tensile Strength: ≥600 MPa

3. Thermal Conductivity: 0.2～0.4 W/(m·K)

4. Dielectric Strength: ≥10 kV/mm

5. Water Absorption: ≤0.5%

6. Barcol Hardness: 38～50

7. Service Temperature Range: -40℃ ~ 120℃

8. Flame Resistance: UL94 V-0 (Optional)

9. Corrosion Resistance: Resist acid, alkali, salt spray

10. Linear Expansion Coefficient: 7～12×10⁻⁶ /℃

Key Advantages

1. Light weight and high strength

2. Anti-corrosion, no rust

3. Excellent insulation, non-magnetic

4. Low thermal conductivity

5. Good dimensional stability

6. Long service life, low maintenance

7. Custom sizes, colors and lengths

8. Good weather resistance

9.

10.

11.

12.

13.

14.

Application
